WallBox
Wallbox - 7KW
Charging solutions for private parking spaces and independent housing units. It can be inserted in any type of existing installation or in new generation plants designed for the use of renewable energy and systems of home automation and building automation.
Description
Technical Data
Description

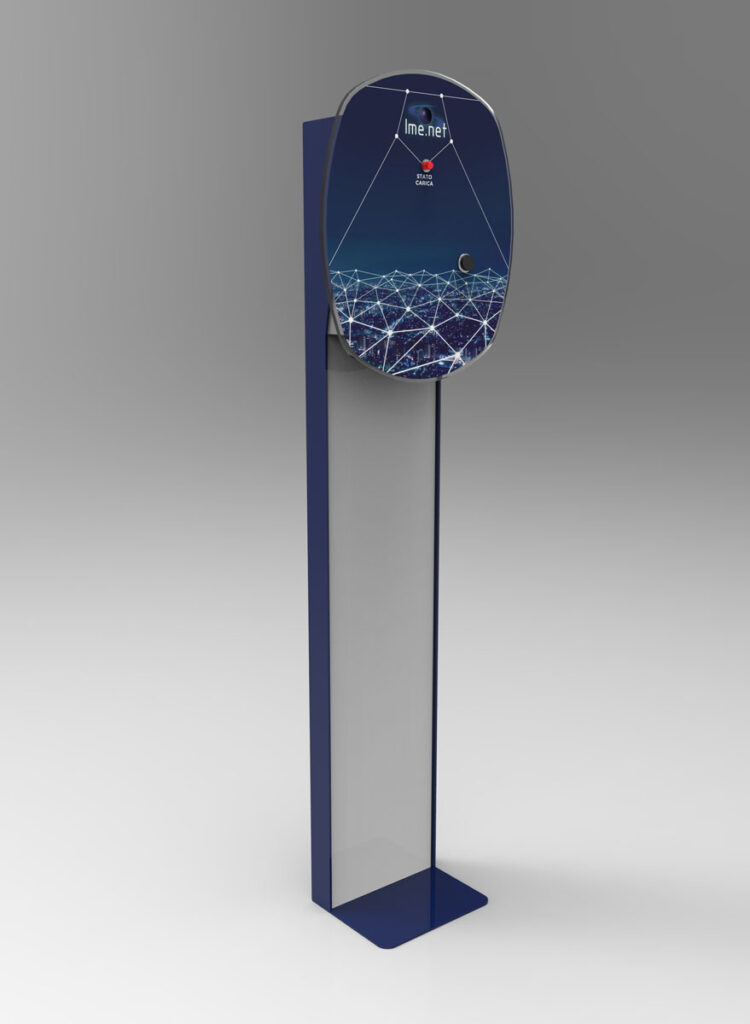

The IMENET WALLBOX BASIC charging station is suitable for daily use during normal periods of stay at the home; meets the needs of individual parking lots, private garages and condominium areas, where the car stops for a few hours.
The maximum power of 7 kW single-phase fully fulfills the needs of the electric vehicle in homes. Designed for residential use, simple and safe, it allows you to program refills to your liking. The power supply can take place through the meters already existing in the building, or by using specific meters dedicated to vehicle recharging and any heat pumps (as required by the Resolution of 19 April 2010 of the Authority for Electricity and Gas – ARG / elt 56/10 in derogation from the obligation of a single meter point per real estate unit). The PODs are regulated by contracts for low voltage users for “other uses” and enjoy a privileged tariff regime.
To archive WALLBOX BASIC, through upgrades, it can be integrated into a building automation system; this allows to obtain maximum levels of resource and load efficiency. The ideal configuration for a recharging system provides for the conservation of the energy contributions arriving both from the grid and from renewable and photovoltaic sources. In this case it will be possible to integrate the charging station system with energy storage solutions.
Technical Data
| SYNTHETIC DESCRIPTION | WALL Box SMART With T2 cable |
| STANDARD CONNECTOR | Type 2 Iec 62196-2 Spiral of 4 Mt |
| EVSE STANDARD | Iec 61581 |
| CE MARKING | Yes |
| WARRANTY | 2 years |
| WAY OF CHARGING | Way 3 |
| MAXIMUM POWER | 7.4 Kw 32 A |
| VOLTAGE | 230 Vac |
| FREQUENCY | 50 Hz |
| CONSUMPTION IN STANDBY | WITH LED 22 W WITHOUT LED 12 W |
| COMMUNICATION | Via Integrated 4g Router |
| DEGREE OF PROTECTION | Ip 55 |
| IMPACT RESISTANCE | Ik 08 |
| BOX MATERIAL | Polycarbonate And Plexglass |
| WALL BOX WEIGHT | 6 Kg |
| COLOR | According to the required customization |
| SIGNALING LED | Yes Of Blue Color |
| WORKING TEMPERATURE | -25 + 50 ° C |
| PROTECTION CLASS | Class I. |
| TYPE A DIFFERENTIAL PROTECTION | Not Present To be installed externally |
| TYPE B DIFFERENTIAL PROTECTION | Not Present To be installed externally |
| MAGNETOTHERMAL PROTECTION | Yes From 32 A |
| MAX ALTITUDE | 2000 Mt |
| 4G MODEM | Integrated Teltonica Model |
| CONNECTIVITY | Via Gateway To Exacto System |
| OTHER TYPES OF CONNECTIVITY | Modbus, Tcp, OCPP |
| POWER MODULATION | Yes In Real Time |
